تعدادی تفاوت اساسی بین HPE ProLiant DL380 Gen10 Plus و HPE ProLiant DL380 Gen10 وجود دارد، که ما در زیر به تفاوت های اصلی بین این دو سرور میپردازیم
HPE ProLiant DL380 Gen10 Plus vs HPE ProLiant DL380 Gen10

HPE ProLiant DL380 Gen10 Plus
سرور HPE DL380 Gen10 Plus یک راه حل فوق العاده ایمن، فوق العاده انعطاف پذیر و سریع میباشد. (Ultra-secure, supremely flexible, scorching-fast server solution)

Internal Viev - 8SFF chassis | |
---|---|
2Processors, heatsink showing | 1 |
Hot Plug redundant HPE Flexible Slot Power supplies | 2 |
Second (optional) riser (Requires second CPU) | 3 |
Primary riser | 4 |
AROC connector | 5 |
DDR DIMM Slots | 6 |
Hot plug fans (6 single rotor standard) | 7 |
Rear View - Standard for all DL380 Gen10 Plus | |
---|---|
Primary Riser PCIe 4.0 Slots (Slots 1-3) | 1 |
Secondary Riser PCIe 4.0 Slots (Slots 4-6) | 2 |
Tertiary Riser (Slots 7-8) | 3 |
Optional serial port | 4 |
Power Supply 1 and 2 | 5 |
VGA connector | 6 |
OCP NIC ports (if equipped) | 7 |
USB connectors 3.0 (2) | 8 |
Dedicated ILO Management Port | 9 |
Blank Cover, not avalible for use | 10 |


Rear View | |||
---|---|---|---|
Power supply Power LED | 9 | Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown) optional 2.SFF rear drives | 1 |
HPE Flexible Slot Power Supply bay 2 (BooW shown) | 10 | Secondary Riser PCI Slots (Slots 4-6top to bottom; not shown, requires second riser card, and second processor) Showing optional 2SFF rear | 2 |
VGA connector | 11 | Optional serial Port | 3 |
Embeddeb 4 x 1GbE Network Adapter | 12 | Tertiary Riser (Slots 7-8) Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) | 4 |
Dedicated iLO management Port | 13 | Power supply Power connection | 5 |
USB connectors 3.0 (2) | 14 | Power supply Power LED | 6 |
Unit ID LED | 15 | HPE Flexible Slot Power Supply bay 1 (BooW shown) | 7 |
Optional FlexibleLOM ports (Shown: 4 x 1GbE) | 16 | Power supply Power connection | 8 |
HPE ProLiant DL380 Gen10
دغدغه شما برروی سرورتان چیست؟ … ذخیره سازی، محاسبه، توسعه؟ (What is your server bottleneck…storage, compute, expansion)
Internal View | |||
---|---|---|---|
Optional HPE Smart Array (P40Bi - A shown) | 8 | Fan cage shown With 6 standard Hot - plug fans (High Performance temperature fans optional) | 1 |
(Under) Hot Plug redundant HPE Flexible Slot Power supplies | 9 | 2 Processors, heatsink showing | 2 |
Connection for second (optional) riser (Requires second CPU) | 10 | Optional HPE Smart Storage Battery | 3 |
Embeddeb 4 x 1GbE NIC | 11 | DDR4 DIMM slots. Shown fully populated in 24 slots (12per processor) | 4 |
Primary PCle riser, standard (Optional double wide GPU riser) | 12 | MicroSD card slot (OPtional Dual Micro - SD option) | 5 |
Optional Flexible LOM slot | 13 | Internal USB 3.0 connector | 6 |
X4 SATA ports (1.2 and 3) | 14 | Chassis intrusion detection connector | 7 |


Rear View - Standard for all DL380 Gen10 Plus | |
---|---|
Primary Riser PCIe 4.0 Slots (Slots 1-3) | 1 |
Secondary Riser PCIe 4.0 Slots (Slots 4-6) | 2 |
Tertiary Riser (Slots 7-8) | 3 |
Optional serial port | 4 |
Power Supply 1 and 2 | 5 |
VGA connector | 6 |
OCP NIC ports (if equipped) | 7 |
USB connectors 3.0 (2) | 8 |
Dedicated ILO Management Port | 9 |
Blank Cover, not avalible for use | 10 |
Front View - SFF chassis With optional Universal Media bay With optical and 2 NVME plus 16 NVME shown | |||
---|---|---|---|
UID button | 10 | Quick removal access panel | 1 |
iLO Front Service Port | 11 | Optional Universal Media bay. 2USB 2.0 and DISplay port standard (8 SFF bay or SFF*2NVMe or 8NVMe optional) | 2 |
USB 3.0 | 12 | Optional Optical drive. Requires Media bay | 3 |
Serial lable pull tag | 13 | Optional 2 SFF HDD, requires Universal Media bay | 4 |
Box 3 | 14 | Drive Bay 2 NVMe shown (8 SFF, 6SFF+2NVME or 8NVMe PCle SSD optional) | 5 |
Box 2 | 15 | 8 SFF Drive Cage Bay | 6 |
Box 1 | 16 | Power On/Standby Button and system power LED button | 7 |
Optional front display port (via Universal Media Bay) | 17 | Health LED | 8 |
Optional USB 2.0 (Via Universal Media Bay) | 18 | NIC Status | 9 |

ویژگیهای کلیدی سرور اچ پی HPE Proliant DL380 Gen10 Plus
دارای قابلیت مدیریت سخت ترین حجم کاری
سرور فوق با داشتن این ویژگی عملکرد و کارایی هر بارکاری را بهبود میبخشد.
- راه اندازی امن از طریق UEFI
- پشتیبانی امن از شروع
- فریمورهای غیر قابل تغییر
- قابلیت بازگشتی
مدیریت هوشمند اتوماتیک
طراحی انعطاف پذیر
-
انتخاب بین کارت شبکههای منعطف
-
کنترلرهای ذخیرهسازی باز طراحی شده که به شما امکان انتخاب سرعت 12Gb/s تبادل اطلاعات با داریوهای ذخیرهسازی و همچنین عملکرد در دو حالت SAS و حالت HBA Mode را در اختیارتان قرار میدهد.
developer_boardپردازندهها (Processors)
سرور HPE Proliant DL380 Gen10 Plus که سومین نسل از پردازندههای Intel Xeon Scalable را پشتیبانی میکند.

3rd Gen Xeon Scalable Silver Processors
- حداکثر 20 هسته در هر پردازنده Intel Xeon Silver.
- تا 8 کانال حافظه تا 3200MT/s
- دارای Intel SGX، مستقرترین محیط اجرای قابل اعتماد، با حداکثر 512 گیگابایت در هر پردازنده..

3rd Gen Xeon Scalable Gold Processors
- حداکثر 32 هسته در هر پردازنده Intel Xeon Gold
- تا 8 کانال حافظه تا 3200MT/s
- دارای Intel SGX، مستقرترین محیط اجرای قابل اعتماد، با حداکثر 512 گیگابایت در هر پردازنده.

3rd Gen Xeon Scalable Platinum Processors
- حداکثر 40 هسته در هر پردازنده Intel Xeon Platinum.
- تا 8 کانال حافظه تا 3200MT/s
- دارای Intel SGX، مستقرترین محیط اجرای قابل اعتماد، با حداکثر 512 گیگابایت در هر پردازنده.
HPE ProLiant DL380 Gen10 2nd Gen Intel Xeon Scalable Processors
سرور HPE Proliant DL380 Gen10 که دومین نسل از پردازندههای Intel Xeon Scalable را پشتیبانی میکند.

2nd Gen Xeon Scalable Bronze
پردازندههای Intel Xeon Bronze عملکرد سطحی را برای مشاغل کوچک و سرورهای ذخیرهسازی اولیه ارائه میکنند و قابلیت اطمینان، خدمات و در دسترس بودن را برای برآورده کردن نیازهای شما ارائه میکنند.

2nd Gen Xeon Scalable Silver
پردازندههای Intel Xeon Silver با ارائه عملکرد ضروری، سرعت حافظه بهتر و بهرهوری انرژی، عملکرد مورد نیاز برای محاسبات ورودی مرکز داده، ذخیرهسازی و شبکه را ارائه میدهند.

2nd Gen Xeon Scalable Gold
پردازندههای Intel Xeon Gold با پشتیبانی از سرعت حافظه بالاتر، ظرفیت حافظه و مقیاسپذیری بهبود یافته، عملکرد، قابلیت اطمینان و امنیت سختافزاری بهبود یافتهای را ارائه میکنند.

2nd Gen Xeon Scalable Platinum
این پردازندهها با عملکرد فوقالعاده پردازشی و امنیت مستحکم و مبتنی بر سختافزار، برای ماموریتهای حیاتی، هوش مصنوعی، یادگیری ماشینی تحلیلی در زمان واقعی و بارهای کاری چند ابری ایدهآل هستند.
cachedProcessor Cache
HPE ProLiant DL380 Gen10 Processor Cache Options |
---|
38.50MB |
35.75MB |
33.00MB |
30.25MB |
27.50MB |
24.75MB |
22.00MB |
19.25MB |
16.50MB |
13.75MB |
11.00MB |
8.25MB |
HPE ProLiant DL380 Gen10 Plus Processor Cache Options |
---|
60MB |
57MB |
54MB |
48MB |
42MB |
39MB |
36MB |
24MB |
18MB |
12MB |
Processor Speed
HPE ProLiant DL380 Gen 10 Speed Options |
---|
3.9GHz |
3.8GHz |
3.6GHz |
3.4GHz |
3.3GHz |
3.2GHz |
3.1GHz |
3.0GHz |
2.9GHz |
2.8GHz |
2.7GHz |
2.6GHz |
2.5GHz |
2.4GHz |
2.3GHz |
2.2GHz |
2.1GHz |
1.9GHz |
1.8GHz |
HPE ProLiant DL380 Gen 10 Plus Processor Speeds Options |
---|
3.6GHz |
3.2GHz |
3.1GHz |
3.0GHz |
2.9GHz |
2.8GHz |
2.6GHz |
2.4GHz |
2.3GHz |
2.2GHz |
2.1GHz |
2.0GHz |

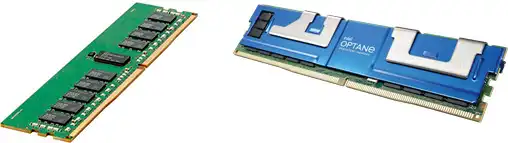

Memory
HPE ProLiant DL380 Gen10

در مقایسه، HPE ProLiant 380 Gen10 دارای 24 اسلات DIMM (تا 12 در هر پردازنده) با ظرفیت حداکثر 7.6 ترابایت است. تا 2933 مگاهرتز سازگار با Intel Optane Persistent Memory 100 series
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) | Type |
24-12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel | DIMM Slots Available |
3.0TB 24 x 128 GB LRDIMM @ 2933 MT/s | Maximum capacity (LRDIMM) |
1.54TB 24x64GB RDIMM @ 2933MT/s | Maximum capacity (RDIMM) |
6.0TB 12 X 512 GB Memory Modules @ 2666 MT/s | Maximum capacity (Intel Optane Persistent Memory for HPE) |
192GB 12 x 16 GB NVDIMM @ 2666 MT/s | Maximum capacity (HPE NVDIMMs) |
HPE ProLiant 380 Gen10 Plus دارای 32 اسلات DIMM، HPE DDR4 SmartMemory با حداکثر 8.1 ترابایت RDIMM (4 ترابایت در هر پردازنده) / تا 11.2 ترابایت – LRDIMM و اینتل Optane Persistent Memory 200 Series (5.6 ترابایت در هر پردازنده با 8xLRDIM و 8x512GB Intel Optane PMem). تا 3200 مگاهرتز
HPE DDR4 SmartMemory, Registered (RDIMM) | Type |
32-16DIMM slots per processor, 8channels per processor, 2 DIMMs per channel | DIMM Slots Available |
8.0TB 32 x 256 GB LRDIMM @ 3200 MT/s | Maximum capacity (LRDIMM) |
2.0TB 32 x 64 GB RDIMM @ 3200 MT/s | Maximum capacity (RDIMM) |
8.0TB 16 X 512 GB Memory Modules | Maximum capacity (Intel Optane Persistent Memory for HPE) |
HPE ProLiant DL380 Gen10 Plus

چه ماژول های حافظهای توسط سرورهای HPE ProLiant DL380 Gen10 پشتیبانی میشوند؟
Registered DIMMs (RDIMMs) |
---|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 Registered Smart Memory Kit |
HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 Registered Smart Memory Kit |
HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 Registered Smart Memory Kit |
HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 Registered Smart Memory Kit |
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 Registered Smart Memory Kit |
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 Registered Smart Memory Kit |
HPE 32GB (1x32GB) Single Rank x4 DDR4-2933 Registered Memory Kit |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 Registered Smart Memory Kit |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 Registered Smart Memory Kit |
HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 Registered Smart Memory Kit |
Load Reduced DIMMs (LRDIMMs) |
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 Load Reduced Smart Memory Kit |
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 Load Reduced Smart Memory Kit |
HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 Load Reduced Smart Memory Kit |
HPE 128GB (1x128GB) Octal Rank x4 DDR4-2933 Load Reduced 3DS Smart Memory Kit |
Intel Optane persistent memory for HPE |
Intel Optane 128GB persistent memory 100 Series for HPE |
Intel Optane 256GB persistent memory 100 Series for HPE |
Intel Optane 512GB persistent memory 100 Series for HPE |
چه ماژولهای حافظهای توسط سرورهای HPE ProLiant DL380 Gen10 Plus پشتیبانی میشوند؟
Registered DIMMs (RDIMMs) |
---|
HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 Registered Smart Memory Kit |
HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 Registered Smart Memory Kit |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 Registered Smart Memory Kit |
HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 Registered Smart Memory Kit |
HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 Registered Smart Memory Kit |
HPE 32GB (1x32GB) Single Rank x4 DDR4-3200 Registered Smart Memory Kit |
Load Reduced DIMMs (LRDIMMs) |
HPE 128GB (1x128GB) Quad Rank x4 DDR4-3200 Load Reduced Smart Memory Kit |
HPE 256GB (1x256GB) Octal Rank x4 DDR4-3200 Load Reduced 3DS Smart Memory Kit |
HPE Persistent Memory (Intel Optane) |
Intel Optane 128GB persistent memory 200 Series for HPE |
Intel Optane 256GB persistent memory 200 Series for HPE |
Intel Optane 512GB persistent memory 200 Series for HPE |

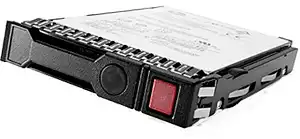

درایوهای ذخیره سازی (Storage Drives)
درایوهای ذخیرهسازی HPE ProLiant DL380 Gen10 Plus Storage Drives

سرور HPE ProLiant DL380 Gen10 Plus از چند درایو پشتیبانی میکند؟
پیکربندی | ظرفیت | نوع درایو |
---|---|---|
24+8+4x15.3TB*(with optional rear SFF drive cage) | 550.8TB | Hot Plug SFF SAS HDD |
24+8+4x7.68TB(with optional SFF drive cage) | 276.48TB | Hot Plug SFF SATA HDD |
12+4+4x18TB+2x3.84TB(with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear) | 367.68TB | Hot Plug LFF SAS HDD |
12+4+4x18TB+2x3.84TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear) | 367.68TB | Hot Plug LFF SATA HDD |
24x15.36TB+8x1.92TB < 12W + 2 x 960GB < 10W | 385.92TB | Hot Plug SFF NVMe PCIe SSD |
سرور HPE ProLiant DL380 Gen10 از چند درایو پشتیبانی میکند؟
پیکربندی | ظرفیت | نوع درایو |
---|---|---|
24+6x2.4 TB*(with optional rear SFF drive cage) | 72.0TB | Hot Plug SFF SAS HDD |
24+6x2TB(with optional SFF drive cage) | 60.0TB | Hot Plug SFF SATA HDD |
12+4+3x16TB+2x3.84TB(with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear) | 311.68TB | Hot Plug LFF SAS HDD |
12+4+3x16TB+2x3.84TB(with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear) | 311.68TB | Hot Plug LFF SATA HDD |
24+6x15.3TB(with optional rear SFF drive cage) | 459TB | Hot Plug SFF SAS SSD |
24+6x7.68TB(with optional rear SFF drive cage) | 230.4TB | Hot Plug SFF SATA SSD |
12+4+3x1.92TB+2x3.84TB(with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear) | 44.16TB | Hot Plug LFF SATA SSD |
12+4+3x1.92TB+2x3.84TB(with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear) | 44.16TB | Hot Plug LFF SAS SSD |
20x15.36 TBNVMe | 307.2TB | Hot Plug SFF NVMe PCIe SSD |

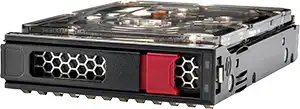

درایوهای ذخیرهسازی HPE ProLiant DL380 Gen10 Storage Drives

منبع تغذیه (Power)
منبع تغذیه در سرورهای HPE ProLiant DL380 Gen10

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Available in 94% efficiency.) |
HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (با راندمان 94% و 96% موجود است. همچنین در ورودی های برق -48VDC و 227VAC/380VDC موجود است.) |
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Available in 94% efficiency. Also available in -48VDC) |
منبع تغذیه در سرورهای HPE ProLiant DL380 Gen10 Plus

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (با راندمان 94% و 96% موجود است. همچنین در ورودی های برق -48VDC و 227VAC/380VDC موجود است) |
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (1 available in 94% efficiency.) |
امنیت (Security)


هر دو سرور HPE ProLiant DL380 Gen10 Plus و HPE ProLiant DL380 Gen10 دارای طیف گسترده ای از ویژگی های امنیتی جهت اطمینان از ایمنی و محافظت از سرور شما می باشند.
- پشتیبانی از UEFI Secure Boot و Secure Start
- بروزرسانی های بدون امکان دستکاری به دلیل وجود امضا دیجیتال و تایید شده توسط شرکت اچ پی
- تغییر ناپذیر بودن توسط قابلیت Silicon Root of Trust
- توانایی جهت برگرداندن فریمورها
- اعتبار سنجی FIPS 140-2
- پاک کردن امن داده های روی فلش NAND و همچنین داده های کاربران
- گواهینامه معیارهای مشترک
- گزینه TPM 1.2 یا ماژول Trusted Platform Module
- قابل تنظیم بودن انطباق PCI DSS
- گزینه TPM 2 یا ماژول Trusted Platform Module نسخه 2
- امکان استفاده از گزینه Bezel Locking Kit جهت امنیت سخت افزاری که از جلوی سرور قابل نصب می باشد
- پشتیبانی از الگوریتم امنیتی CNSA یا Commercial National Security Algorithms
- پشتیبانی از گزینه Chassis Intrusion detection یا تشخیص نفوذ شاسی
- با استفاده از قابلیت بازیابی امن یا Secure Recovery پس از شناسایی فریمور آسیب دیده فریمور را به نسخه حیاتی آن فریمور بازیابی می کند
